| Quantity: | |
|---|---|
Yes
12 Years
New

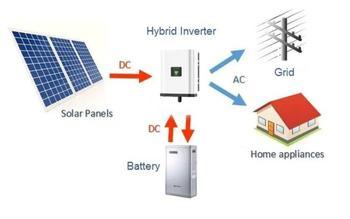

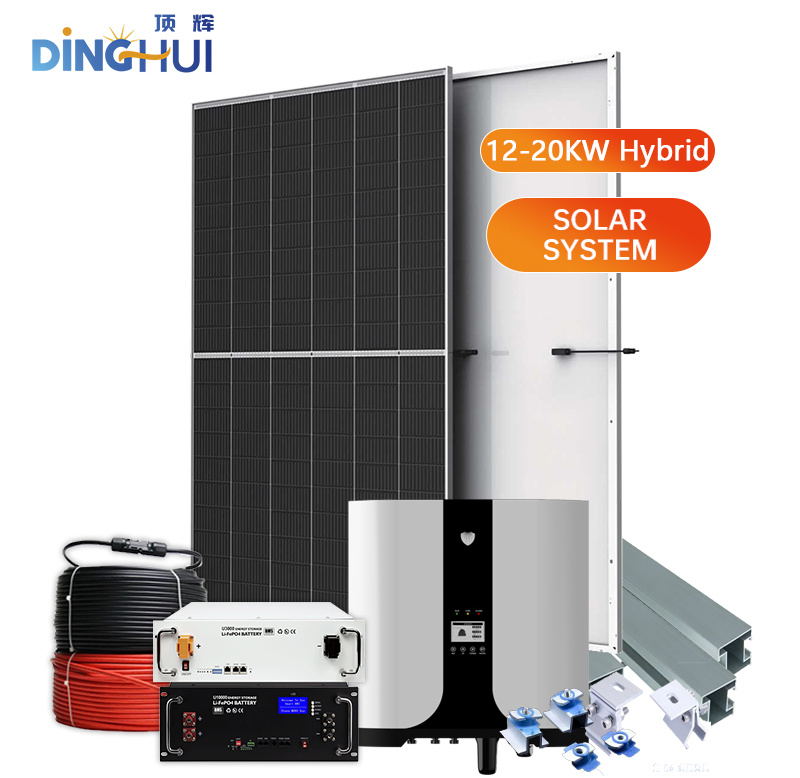

| 12KW hybrid Solar Power System Componets list | |||||
| No | Name | Specification | Quantity | Remark | |

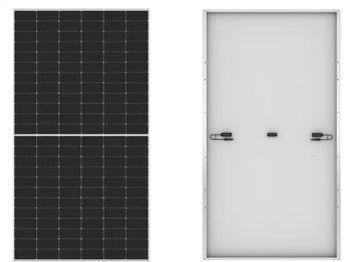

| 1 | mono | 550W | 27 | grade A cells,9pcs in one string and 6strings in paralle1 | |
| 2 | Solar panel bracket | C-shaped steel | 1 | Ground type | |
| 3 | PV combiner box | 3 inputs, 1 output | 2 | waterproof, lightning protection, with DC breaker and fuse | |
| 4 | MPPT charging controller | 216V/100A | 1 | 2PV input ports, 50A/port | |

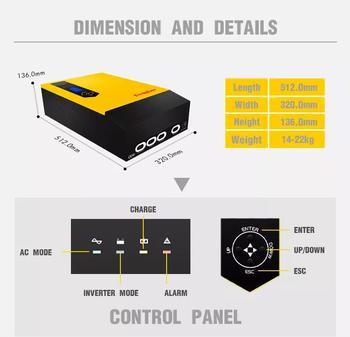

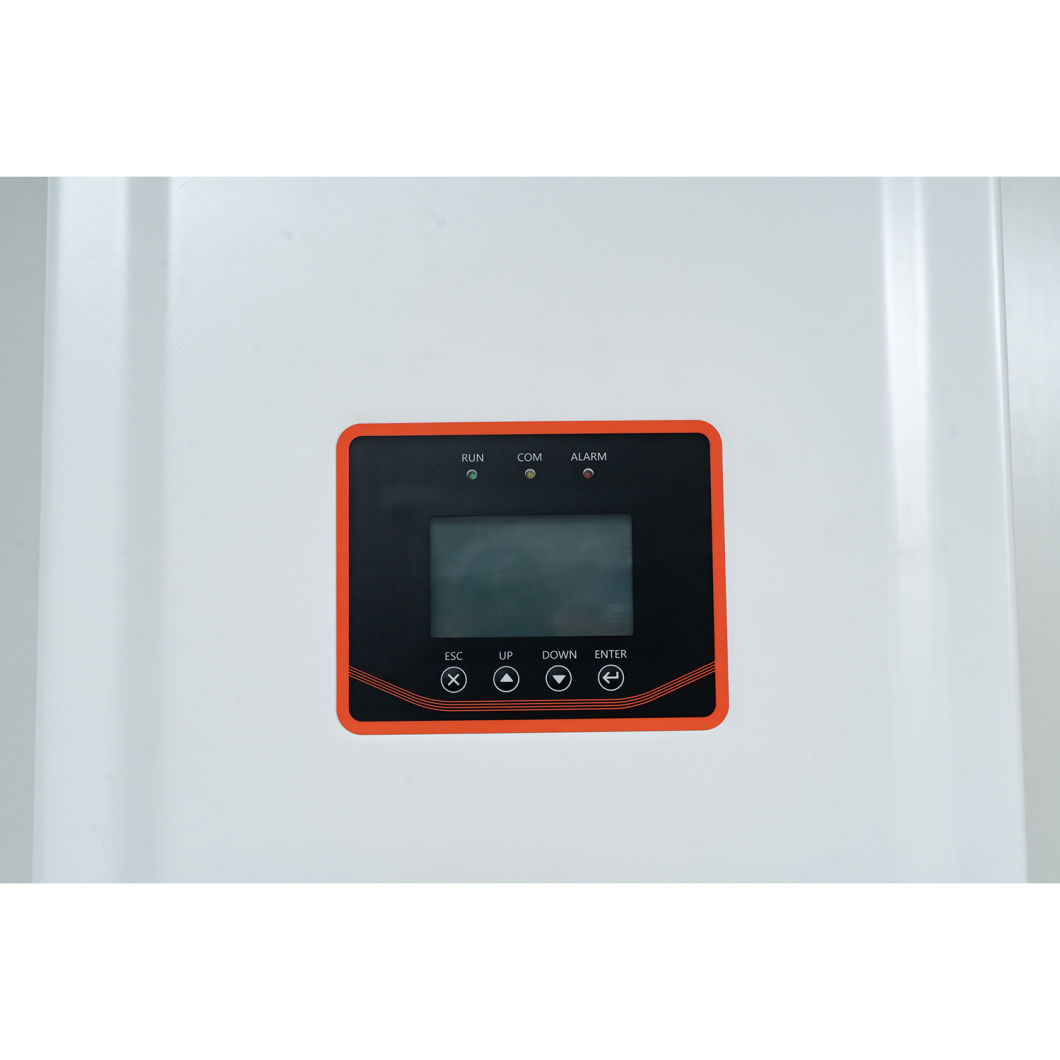

| 5 | hybrid inverter three phase | Pure sine wave, 12KW/216V | 1 | power frequency inverter;output:380VAC/50HZ ;(each phase can run 100% unbalanced loads with 220V50HZ output, the maximum load capacity for each phase is 10KW) | |
| 6 | battery (deep cycle) | 51.2V--200AH | 5 | 7pcs 24v200ah in one string, including cables and battery rack | |
| 7 | accessories | Battery distribution box(with switch and fuse) | 1 | It is for DC part | |
| MC4 connector | 10 | ||||
| PV cables(solar panel to PV combiner box) | 4mm2 | 200 | |||
| BVR cables(PV combiner box to MPPT controller) | 10mm2 | 100 | |||
| BVR cables(battery to distribution box) | 25mm2*2 | 40 | |||
| BVR cables(inverter to distribution box) | 50mm2 | 20 | |||
| BVR cables (MPPT controller to distribution box) | 35mm2 | 20 | |||
